Supercoppo tile-effect insulated roof panel

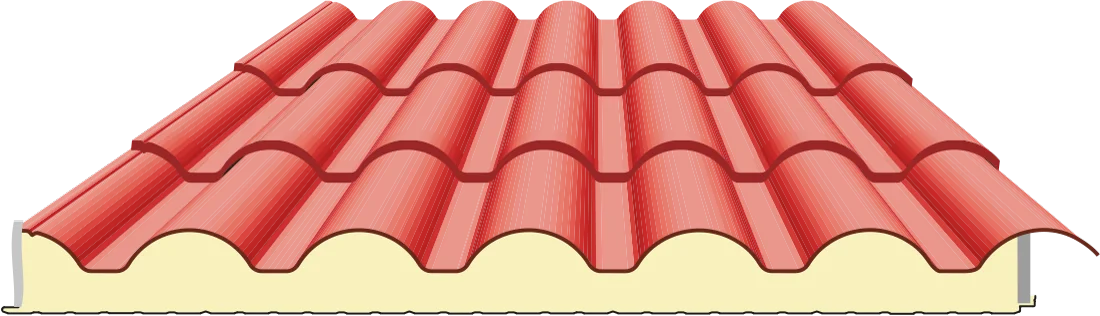

Supercoppo is a tile effect insulated roof panel shaped like a traditional pan-tiled roof, with a 40 mm tile profile on a 1000 mm cover width. It gives houses, extensions and older buildings a tiled look with the speed and light weight of a sandwich panel.
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the Supercoppo tile effect insulated roof panel
It comes in 40, 60, 80 and 100 mm thicknesses, reaching a U-value of 0.20 W/m²K at 100 mm. Because it weighs far less than tiles it is well suited to re-roofing where the structure cannot take extra load. It is certified B-s2,d0 with a PIR core and BRoof(t3) for external fire.
Specification
Size and profile
- Cover width
- 1000 mm
- Length
- Made to length from continuous production.
- Thicknesses
- 40 · 60 · 80 · 100 mm
- Tile height
- 40 mm
Core and joint
- Core
- Polyurethane (PUR) foamed continuously; PIR (polyisocyanurate) available on request (non-standard). Density 39 ±2 kg/m³. Initial thermal conductivity λ = 0.020 W/mK. Declared U-value is the 25-year value (Appendix C, EN 13165).
- Manufacturer
- Isolpack S.p.A., Italy · product code A4
Facings and coatings
- Facings
- Galvanised steel · Pre-painted or plasticised galvanised steel · Stainless steel
- Underside
- Bituminous felt · Embossed aluminium
- Coatings
- Polyester, Superpolyester (HD), PVDF, polyurethane PUR/PA, 15–55 µm. Other films and food-safe coatings on request.
Non-standard thicknesses on request, subject to minimum quantities.
U-value by thickness
| Thickness | U (W/m²K) |
|---|---|
| 40 mm | 0.37 |
| 60 mm | 0.30 |
| 80 mm | 0.23 |
| 100 mm | 0.20 |
Declared 25-year values to EN 14509 (EN 13165 Annex C), on 0.5 + 0.4 mm steel facings.
Fire certification
| Test | Class | Thicknesses |
|---|---|---|
| Reaction to fire EN 13501-1 · PIR | B-s2,d0 | 40–100 mm |
| External fire EN 13501-5 · PUR | BRoof(t3) | 40–100 mm |
Classes are per core and thickness and must be specified at order. The whole range is CE marked with EPD type III (EN ISO 14025) declarations, from an ISO 9001, 14001 and 45001 certified manufacturer.
