Metal roofing sheets
Steel roofing sheets and cladding sheets made to length: six box profile patterns from the 20 mm H 20 to the 40 mm-rib R/W 1000, in galvanised, Aluzinc or colour-coated steel up to 1.0 mm. All fire class A1 and BRoof(cwft).
All metal roofing sheets products
Supercoppo Metal Sheet

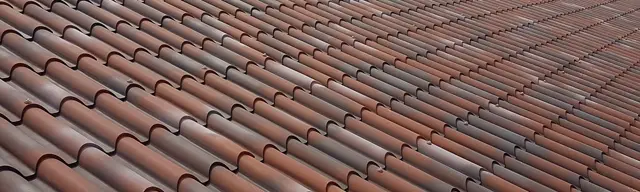

Tile-effect single-skin roof sheet · up to 0.6 mm steel
Compare the range
Declared values from manufacturer datasheets to EN 14509 and EN 13501. A dash means no rating is published.
| Product | Type | Core | Thickness | U @ 100 mm | Reaction to fire | Fire resistance | External fire |
|---|---|---|---|---|---|---|---|
| H 20 | Box profile roofing and cladding sheet | Steel | up to 1.0 mm steel | – | A1 | – | BRoof(cwft) |
| H 28 | Box profile roofing and cladding sheet | Steel | up to 1.0 mm steel | – | A1 | – | BRoof(cwft) |
| CT/C 200 | Deep-rib roofing and wall sheet | Steel | up to 1.0 mm steel | – | A1 | – | BRoof(cwft) |
| SL 940 | Lightweight roofing and wall sheet | Steel | up to 1.0 mm steel | – | A1 | – | BRoof(cwft) |
| R/W 1000 | 1000 mm cover roofing and wall sheet | Steel | up to 1.0 mm steel | – | A1 | – | BRoof(cwft) |
| Supercoppo Metal Sheet | Tile-effect single-skin roof sheet | Steel | up to 0.6 mm steel | – | A1 | – | BRoof(cwft) |
Which one do I need?
Not sure? Send us the span, the use and the county and we will spec it. No charge.
Get a quote- General shed roof, best value
- H 28 (900 or 1120 mm cover) or R/W 1000
- Wall cladding
- H 20 (20 mm rib) or CT/C 200 fitted rib-down
- Over-roofing an old fibre-cement roof
- SL 940: light, 9 ribs, drains well

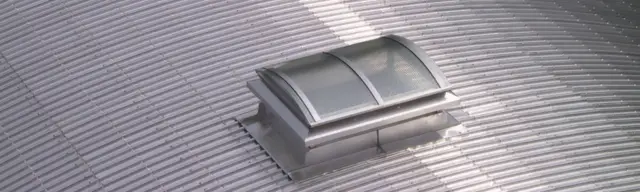

- Curved roof
- H 28 or R/W 1000 calendered; SL 940 or H 20 notched
- Tiled look
- Supercoppo Metal Sheet
Facings and coatings
Galvanised, Aluzinc, stainless steel or aluminium; pre-painted polyester, Superpolyester HD, PVDF or PUR/PA.
Certifications on this range
Reaction to fire (EN 13501-1), fire resistance (EN 13501-2), external fire (EN 13501-5), EPD type III and CE marking. Classes depend on core and thickness and are confirmed at order.
Full certification tablesMetal roofing sheets questions
What gauge of roof sheet do I need?
0.5 mm is typical for agricultural roofs on close purlin centres; 0.6–0.7 mm for wider spans or foot traffic. The datasheet load tables on each product page give capacity by span.
Do you cut sheets to length?
Yes. Every sheet comes off a continuous line, so you order the length you need.
Do you have anti-condensation sheets?
Isogrek H28 is a 10 mm PUR-backed sheet that stops drips on livestock sheds. See insulated roof panels.
