Supercoppo Metal Sheet tile-effect single-skin roof sheet

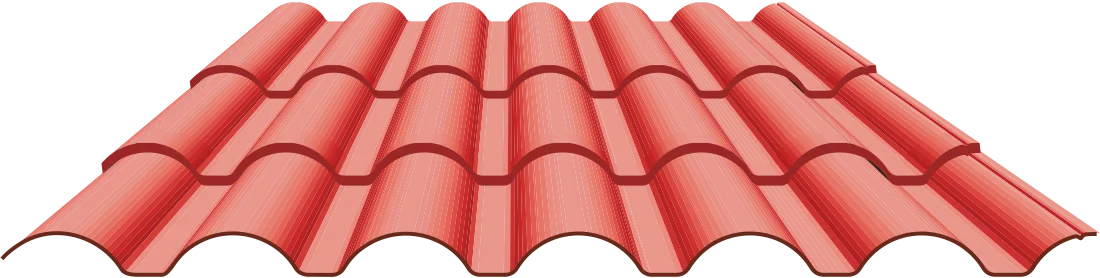

Supercoppo Metal Sheet is a tile effect roofing sheet in single-skin steel, pressed to the shape of a traditional pan-tiled roof. It is the uninsulated partner to the Supercoppo insulated panel, for outbuildings, canopies and roofs that are insulated separately.
A1[In stock IE?]
Thicknessup to 0.6 mm steel
Cover width1000 mm
MaterialSteel
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the Supercoppo Metal Sheet tile effect roofing sheet
It has a 1000 mm cover width and is supplied up to 0.6 mm thick. As steel it is A1 for reaction to fire and BRoof(cwft) on roofs.
Specification
Size and profile
- Cover width
- 1000 mm
- Length
- Made to length from continuous production.
- Steel gauge
- up to 0.6 mm
Core and joint
- Material
- Single-skin profiled steel sheet
- Manufacturer
- Isolpack S.p.A., Italy
Facings and coatings
- Facings
- Galvanised steel · Pre-painted or plasticised galvanised steel · Stainless steel
- Coatings
- Polyester, Superpolyester (HD), PVDF, polyurethane PUR/PA, 15–55 µm. Other films and food-safe coatings on request.
Non-standard thicknesses on request, subject to minimum quantities.
Fire certification
| Test | Class | Thicknesses |
|---|---|---|
| Reaction to fire EN 13501-1 · Steel | A1 | all |
| External fire EN 13501-5 · Steel | BRoof(cwft) | all |
Classes are per core and thickness and must be specified at order. The whole range is CE marked with EPD type III (EN ISO 14025) declarations, from an ISO 9001, 14001 and 45001 certified manufacturer.
Use it for
ResidentialCommercialAgriculture
