Techtum roof panel for precast concrete buildings
Techtum is an insulated roof panel for precast concrete buildings with prestressed wing beams. Its thickness varies along the panel, from 40 to 130 mm, in a truss-like section that gives the roof extra strength while leaving a flat underside.
Solar-ready[In stock IE?]
Thicknessvariable 40–130 mm (trapezoidal longitudinal section)
Cover width1000 mm
CorePUR / PIR
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the Techtum roof panel for precast concrete buildings

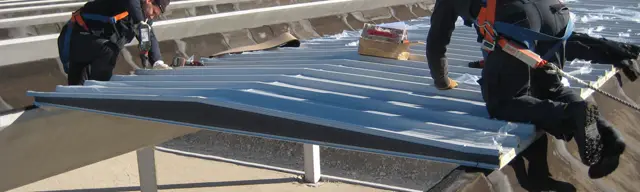

That flat soffit lets sprinklers be positioned properly under the roof without extra ceilings. Standard panels are 3300 mm long for a 3000 mm span, with lengths up to 5500 mm on request. The roof is walkable between pitches and can take solar panels, smoke vents and rooflights. It also fits steel and laminated timber frames.
Specification
Size and profile
- Cover width
- 1000 mm
- Length
- Standard L = 3300 mm (net span 3000 mm); up to L = 5500 mm (net span 5200 mm) on request subject to minimum quantities.
- Thicknesses
- variable 40–130 mm (trapezoidal longitudinal section)
- Profile
- Trapezoidal longitudinal section (truss-like), flat soffit
- Max load
- 375 kg/m² at L 3300 mm (datasheet)
Core and joint
- Core
- Polyurethane (PUR) foamed continuously; PIR (polyisocyanurate) available on request (non-standard). Density 39 ±2 kg/m³. Initial thermal conductivity λ = 0.020 W/mK. Declared U-value is the 25-year value (Appendix C, EN 13165).
- Manufacturer
- Isolpack S.p.A., Italy
Facings and coatings
- Facings
- Pre-painted galvanised steel (standard 0.6 mm ext. + 0.4 mm int.)
- Coatings
- Polyester, Superpolyester (HD), PVDF, polyurethane PUR/PA, 15–55 µm. Other films and food-safe coatings on request.
Non-standard thicknesses on request, subject to minimum quantities.
Use it for
IndustryCommercialInfrastructureRoofs carrying PV
