Alfa 1 insulated wall panel, visible fixing
Alfa 1 is a visible-fix insulated wall panel with a finely ribbed face, the standard choice for cladding workshops, warehouses and farm buildings. It comes in a wide range of thicknesses from 25 to 200 mm, down to a U-value of 0.11 W/m²K at 200 mm.
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the Alfa 1 insulated wall panel
It also works as an internal partition, creating offices or stores inside an existing building without blockwork. With a PIR core it is certified B-s2,d0 at every thickness. It is designed for vertical fixing; horizontal use needs a designer to check the joint.
Specification
Size and profile
- Cover width
- 1000 mm
- Length
- Made to length from continuous production.
- Thicknesses
- 25 · 30 · 35 · 40 · 50 · 60 · 80 · 100 · 120 · 140 · 150 · 160 · 180 · 200 mm

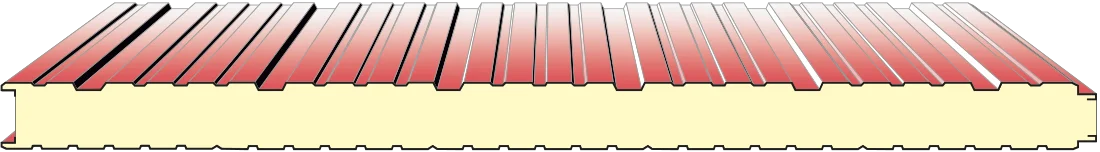

- Profile
- Micro-ribbed, 166.4 mm module
Core and joint
- Core
- Polyurethane (PUR) foamed continuously; PIR (polyisocyanurate) available on request (non-standard). Density 39 ±2 kg/m³. Initial thermal conductivity λ = 0.020 W/mK. Declared U-value is the 25-year value (Appendix C, EN 13165).
- Manufacturer
- Isolpack S.p.A., Italy · product code A1
Facings and coatings
- Facings
- Pre-painted or plasticised galvanised steel · Aluzinc · Stainless steel · Natural or pre-painted aluminium
- Coatings
- Polyester, Superpolyester (HD), PVDF, polyurethane PUR/PA, Plastisol, plasticised PVC, 15–200 µm. Other films and food-safe coatings on request.
Non-standard thicknesses on request, subject to minimum quantities.
U-value by thickness
| Thickness | U (W/m²K) |
|---|---|
| 25 mm | 0.82 |
| 30 mm | 0.70 |
| 35 mm | 0.61 |
| 40 mm | 0.53 |
| 50 mm | 0.43 |
| 60 mm | 0.36 |
| 80 mm | 0.28 |
| 100 mm | 0.22 |
| 120 mm | 0.18 |
| 140 mm | 0.16 |
| 150 mm | 0.15 |
| 160 mm | 0.14 |
| 180 mm | 0.12 |
| 200 mm | 0.11 |
Declared 25-year values to EN 14509 (EN 13165 Annex C), on 0.4 + 0.4 mm steel facings.
Fire certification
| Test | Class | Thicknesses |
|---|---|---|
| Reaction to fire EN 13501-1 · PIR | B-s2,d0 | 25–200 mm |
| Zulassung (DE) | Yes | See datasheet |
Classes are per core and thickness and must be specified at order. The whole range is CE marked with EPD type III (EN ISO 14025) declarations, from an ISO 9001, 14001 and 45001 certified manufacturer.
