Ampex System long-span structural floor deck

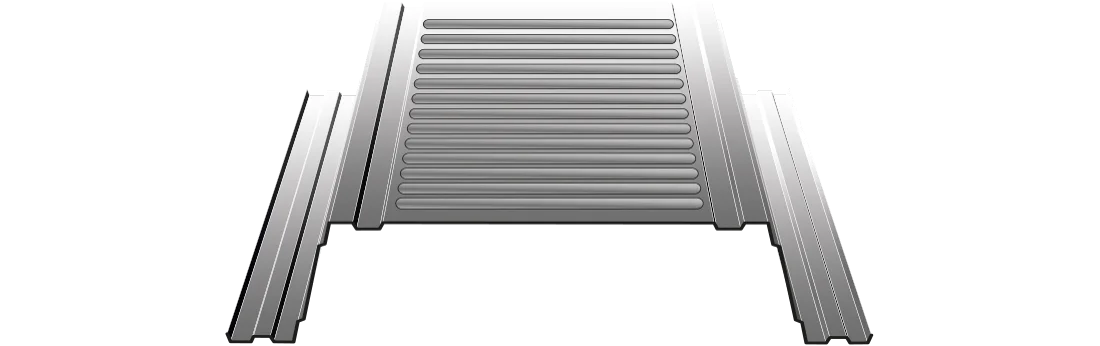

Ampex System is a long-span floor decking sheet for steel-framed buildings. The deep, heavy-gauge profile spans without intermediate props, used either as dry formwork or with a concrete infill.
A1[In stock IE?]
Thickness0.8 – 1.5 mm steel
Cover width780.6 mm
MaterialSteel
- Nationwide delivery
- No minimum order
- Samples available
- Lead time depends on stock
About the Ampex System long-span floor decking
It has a 780.6 mm cover width and is supplied from 0.8 to 1.5 mm thick. As steel it is A1 for reaction to fire.
Specification
Size and profile
- Cover width
- 780.6 mm
- Length
- Made to length from continuous production.
- Steel gauge
- 0.8 – 1.5 mm
Core and joint
- Material
- Single-skin profiled steel sheet
- Manufacturer
- Isolpack S.p.A., Italy
Facings and coatings
- Facings
- Galvanised or pre-painted steel
- Steel grades
- S 235, S 250 GD+Z, S 260 NC, S 275, S 280 GD+Z, S 315 MC, S 315 NC, S 320 GD+Z
- Coatings
- Polyester
Non-standard thicknesses on request, subject to minimum quantities.
Fire certification
| Test | Class | Thicknesses |
|---|---|---|
| Reaction to fire EN 13501-1 · Steel | A1 | all |
Classes are per core and thickness and must be specified at order. The whole range is CE marked with EPD type III (EN ISO 14025) declarations, from an ISO 9001, 14001 and 45001 certified manufacturer.
Use it for
IndustryCommercialInfrastructure
